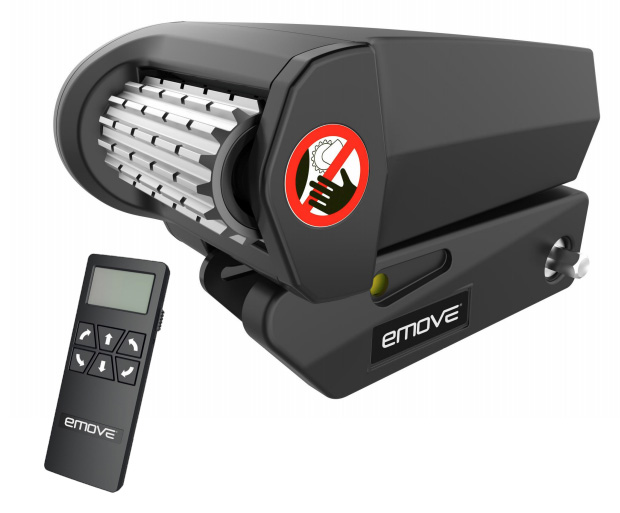

Leisurewize E-move EM313 ALL WHEEL DRIVE

• Four-brush Motor (Two brush motor in old model)
• Upgraded Gearing System
• 70MM New Roller (55mm old roller)
• New Handset
• Max Load: 2500KG

Discover the new generation of Enduro caravans which benefit from the latest improvements,
to offer you even more performance and ease of use.

These new models offer:

– Better ground clearance to fit more caravans

– Improved engine and transmission: the system is more powerful, more durable and quieter

– a new 70 mm diameter drive roller centered on the wheel axis for better contact with the wheel

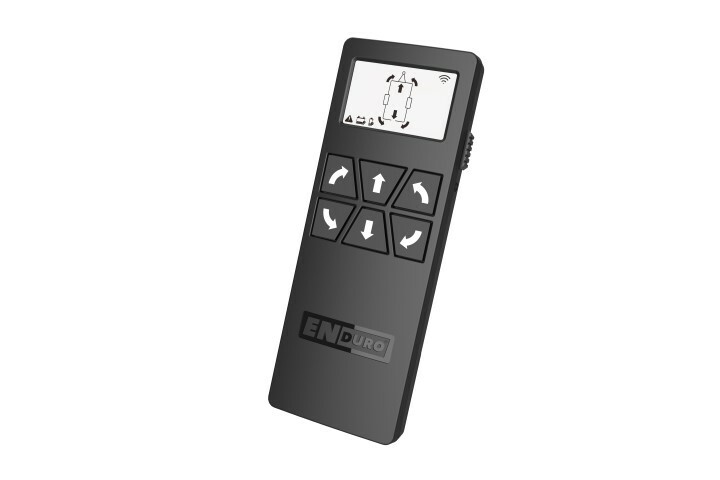

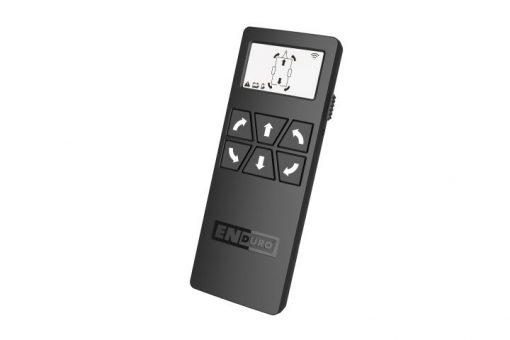

– a new control unit and a remote control with digital display

– a new smartphone application (connection via OPTIONAL Bluetooh adapter, not supplied)

Manual approach.

Technical features:

Voltage: 12V
Average consumption on flat ground: 20A
Maximum consumption: 100A
Recommended battery: lithium 12V 20Ah or acid/AGM 12V 80Ah minimum

Load capacity: 1900Kg up to 18%
2500Kg up to 18% with 4 motors
Number of caravan axles: single and double (for double purchase 2 kits)
Minimum height under the frame: 160 mm
Minimum height from the ground: 155 mm
Speed on flat ground: 12 cm/s
Engine dimensions (LxWxH): 375x210x215 mm
Net weight (without battery): 37 kg
Noise level (dB): 70 DB

Other characteristics

Model: EM313AWD
attachment type: Manual
Number of axles: Twin
Total capacity: 2500kg
Maximum gradient: 18%
